Steps to Reset 2017-2024 Volvo V60 Tire Pressure Monitoring System
Step 1: Turn your Volvo V60 engine on or put the ignition into RUN mode by turning the engine start switch twice without pressing on the brake pedal.
Step 2: Press the Settings/Menu button directly underneath the dashboard information display screen.
Step 3: Slide your finger across the information display screen until all of the menu options become visible.
Step 4: Select CAR STATUS from the Menu options.
Step 5: Choose the TPMS option located on the left side of the information display screen.
Step 6: Press the STORE PRESSURE button.

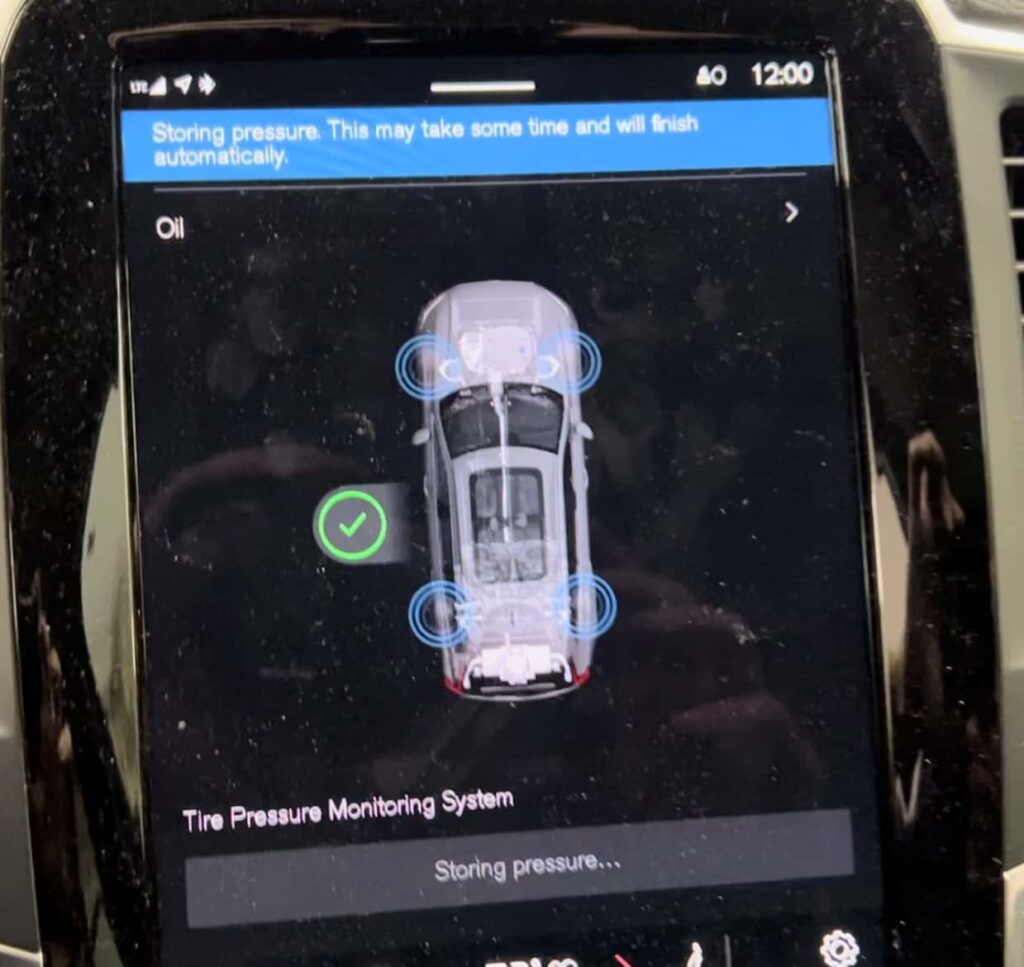

Step 7: A prompt will appear that reads “Store Tire Pressure” “Press OK after the tire pressure in all four tires has been checked and adjusted”. Select OK. Another prompt will appear that reads “Tire Pressure Monitor” “Storing pressure is in progress and will finalize automatically.” Select OK.
Step 8: Drive: Drive your Volvo V60 for at least 10 minutes above 25 Mph.
Steps to Reset 2010-2017 Volvo V60 Tire Pressure Monitoring System
Press the MY CAR button.
Press the OK button.
Scroll down and select Tire Monitor by pressing OK.
Select START CALIBRATION and press OK.
A message will appear “Press OK after the tire pressure in all four tires have been checked and adjusted.”
Press the OK button to confirm.
A confirmation message will appear that reads “Calibration process started and will finalize automatically”.
Drive your Volvo V60 Cross Country for 10 minutes at speeds exceeding 25 mph.
How Does the Volvo V60 Tire Pressure Monitoring System Work?
The Volvo V60 Tire Pressure Monitoring System (TPMS) does not use tire pressure sensors. Instead, the system operates through the car’s Anti-lock Braking System (ABS) sensors, specifically the wheel speed sensors. These type of tire pressure monitoring systems are classified as indirect TPMS.
Wheel Speed Sensors

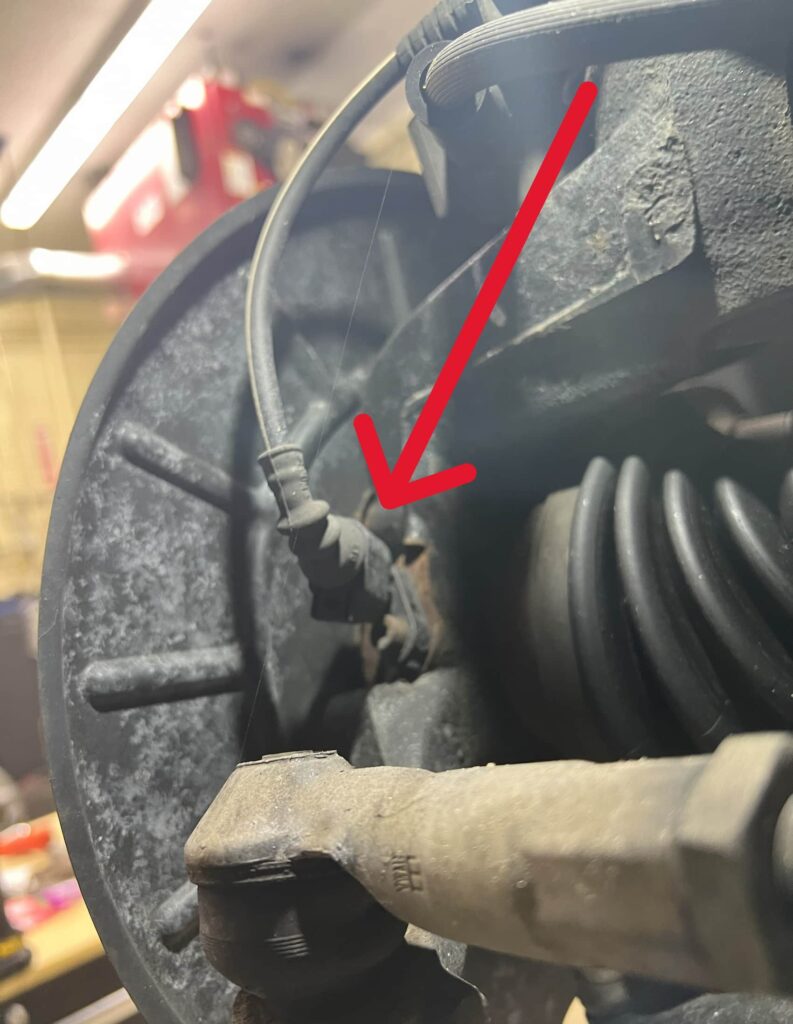

The Volvo V60 TPMS operates by utilizing its wheel speed sensors that are also used by the ABS system and traction control system . Wheel speed sensors are located behind or inside each wheel hub to keep track of each wheel’s speed.
Comparison of Wheel Speed Rotations
Indirect TPMS operates on the concept that a tire with less air pressure will possess a marginally smaller diameter, leading to a higher rotational speed compared to the other three tires. This system assesses and compares the rotational speeds of all four tires by using its wheel speed sensors. It’s important to note that the Volvo V60 tire pressure system is active only while the vehicle is in motion, as it relies on recording wheel speeds to estimate tire pressure.
Calculating Air Pressure Differences
Through the examination of data gathered from the wheel speed sensors, the Volvo V60’s tire pressure monitoring system is able to identify when a single wheel is spinning faster on a consistent basis than the others, suggesting a decrease in tire air pressure.
Volvo V60 Low Tire Pressure Light
When the TPMS detects a notable disparity in rotational speeds, indicative of low inflation pressure, the Volvo V60 activates a low tire alert light on the dashboard to notify the driver. In such instances, the Volvo V60 displays both a “low tire pressure” warning message and the conventional low tire pressure alert symbol (yellow exclamation mark) on the dashboard.
What Sets Off Your Volvo V60 Low Tire Pressure Light?
When the inflation pressure of a tire is excessively low.
Extreme tread wear reduces the overall depth of the tread, slightly reducing the circumference of the tire.
If the four tires are not identical in brand, make, and model.
In cases where the four tires do not match in size.
If there is tread damage or structural damage to a tire.
When one side of the Volvo V60 carries more load than the opposite side.
When one axle bears more weight than the other, such as while towing.
When driving the Volvo V60 with the spare tire.
Following any changes in tire pressure, or after wheels have been rotated.
If snow chains are used on the tires, the TPMS warning light will turn on due to the increased circumference caused by the chains.
Common Volvo V60 Tire Pressure Monitoring System Problems
False Warnings: Incorrect alerts due to misread tire speeds.
Calibration Needs: Issues from not resetting the Volvo TPMS after tire changes or rotations.
Temperature Effects: Wrong air pressure readings from volume changes in tires after temperature shifts.
Missed Tire Issues: Failure to detect severe wear or damage.
Mismatched Tires: Incorrect alerts from using different size or type of tires.
Software Issues: Glitches affecting TPMS accuracy.
Driving Changes: Tire alerts caused by rapid driving differences.
Single Tire Changes: Inconsistent warnings after replacing or repairing only one tire.
Non-Standard Modifications: Aftermarket wheels or tires affecting accuracy.
Sensor Faults: Malfunctions in ABS or wheel speed sensors impacting performance.
Why is My Volvo V60 Tire Pressure Light On When the My Tires are Fine?
A frequent cause for the Volvo V60 low tire pressure light to turn on, despite the tires appearing fine, is the presence of tires of varying brands and sizes. The nature of indirect TPMS is such that even minor differences in tire size or brand can trigger the low tire pressure warning light. It’s essential for all four tires to be consistent in size, brand, make, and model.
What to Do If the Volvo V60 Low Tire Pressure Warning Reset Does Not Work?
If your Volvo V60 low tire pressure light remains illuminated after correctly adjusting tire pressures, it’s necessary to recalibrate the system. Confirm that your tire pressures align with the specifications on the Volvo driver’s door panel, then follow the recalibration process for the Volvo V60 TPMS. If the first attempt doesn’t work, let out 10 psi from each tire, refill them, drive for 5-10 minutes, and attempt the TPMS reset again; it might take several tries.
A continuous TPMS warning alert may signal issues with a wheel speed sensor or the vehicle’s computer system.
VOLVO V60 TIRE Pressure Reference Values
FAQ
Can the Volvo V60 TPMS be disabled?
The Volvo V60 Cross Country tire pressure monitoring system cannot be disabled.
Is it okay to drive with tire pressure light on?
We advise against driving the Volvo V60 Cross Country when the low tire pressure warning is active. Should your Volvo low tire pressure indicator illuminate, you should safely stop the vehicle and manually inspect the air pressure of each tire using a digital tire pressure gauge. Also, visually examine the tires and wheels for any irregularities.
Can a Change in Weather Cause the Volvo V60 Low Tire Light To Turn On?
Yes. It is very common for a change in air temperature to cause the tires to lose air pressure and the tire pressure light to turn on. For 10°F change in air temperature, the air pressure in your tires will also change by 1 Psi.
How far can you drive the Volvo V60 with the Low tire Pressure light on?
There’s no specific “safe” duration or distance for driving when the low tire pressure light is illuminated. It’s best to identify the cause of the Volvo Cross Country low tire pressure warning before proceeding with your journey.
What Happens If a Wheel Speed Sensor Stops Working?
If any of the 4 wheel speed sensors stop working, the ABS, traction control, and stability control warning lights will illuminate on the dashboard and the tire pressure monitoring system will stop working and reading air pressure accurately.
Everything in this article is applicable to all Volvo V60 models and versions built between 2015-2024 including the Volvo V60 Cross Country and V60 Recharge (plug in hybrid).
